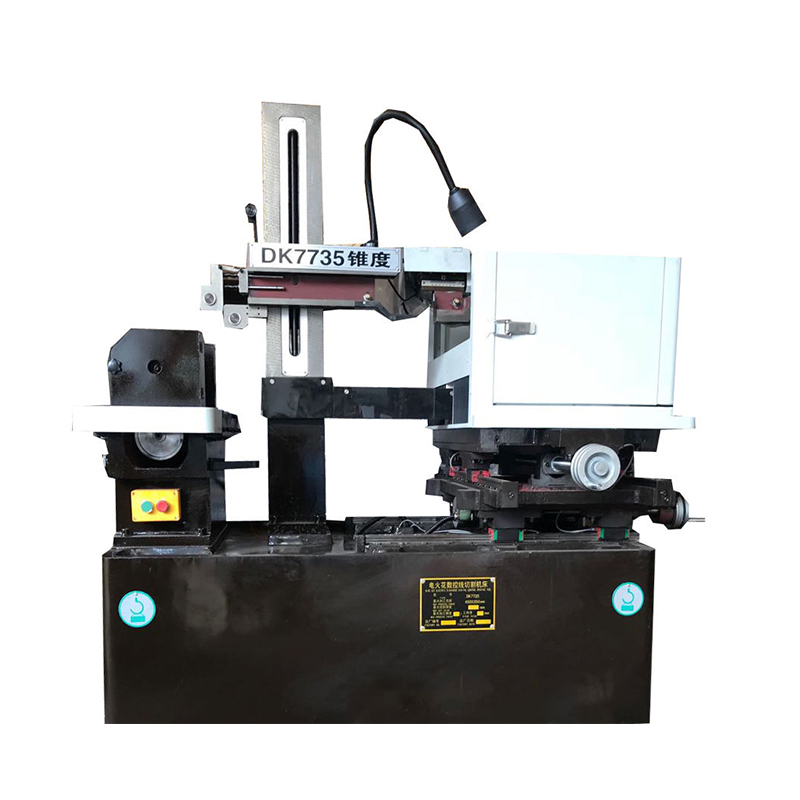

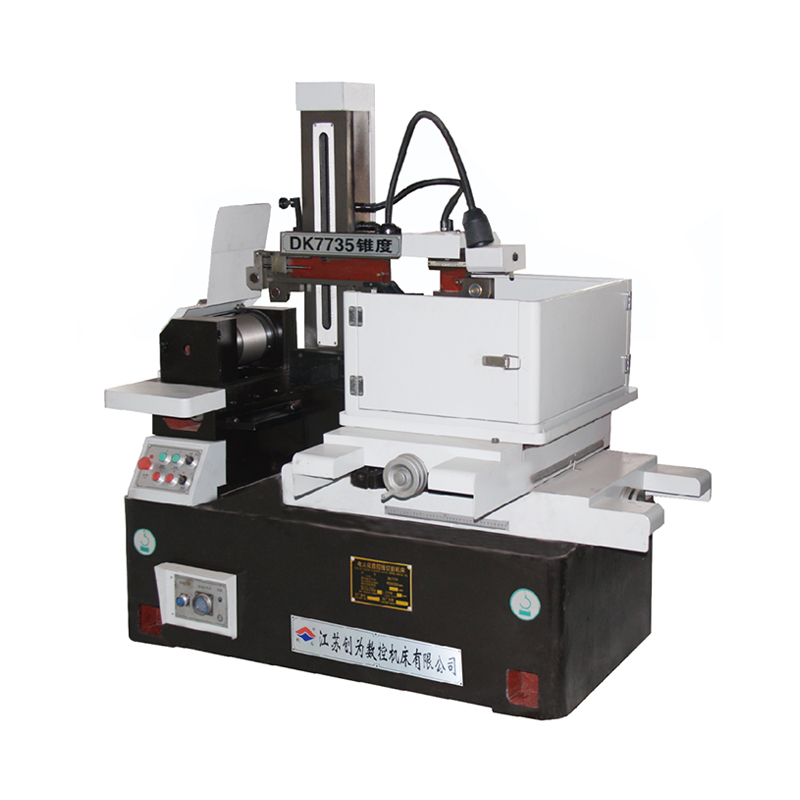

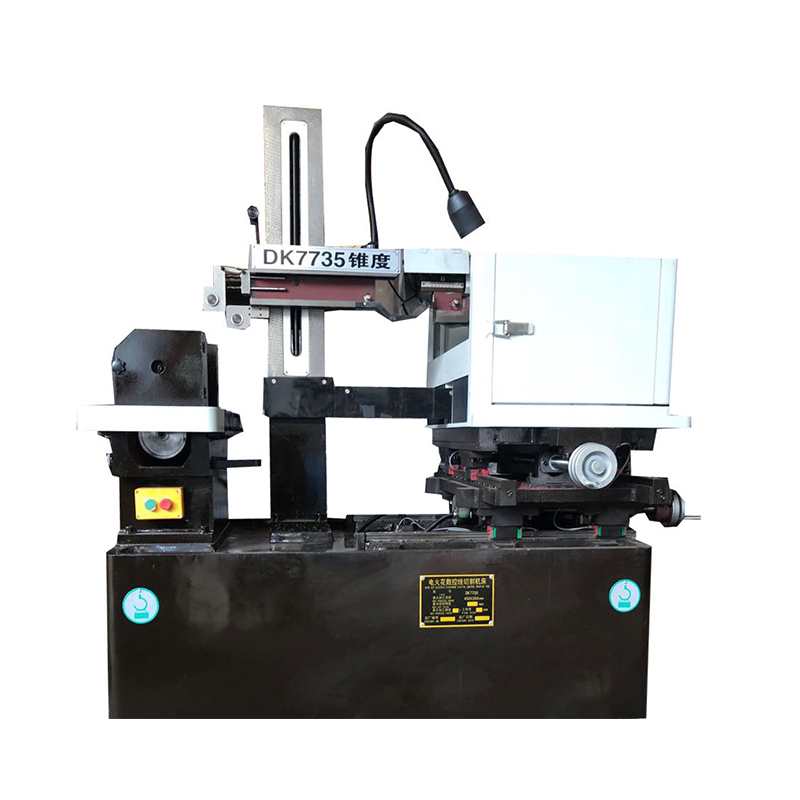

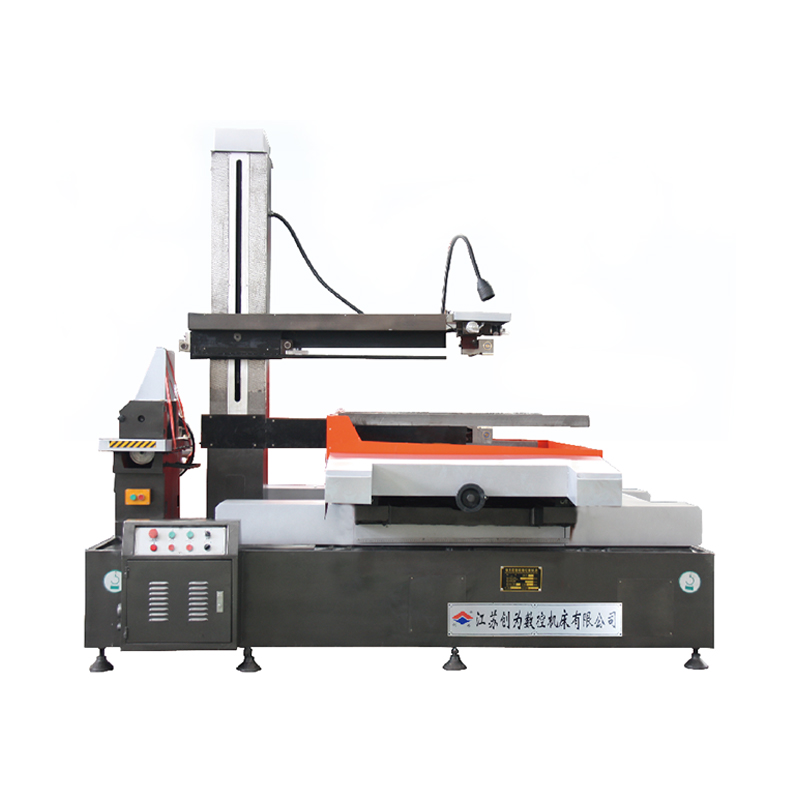

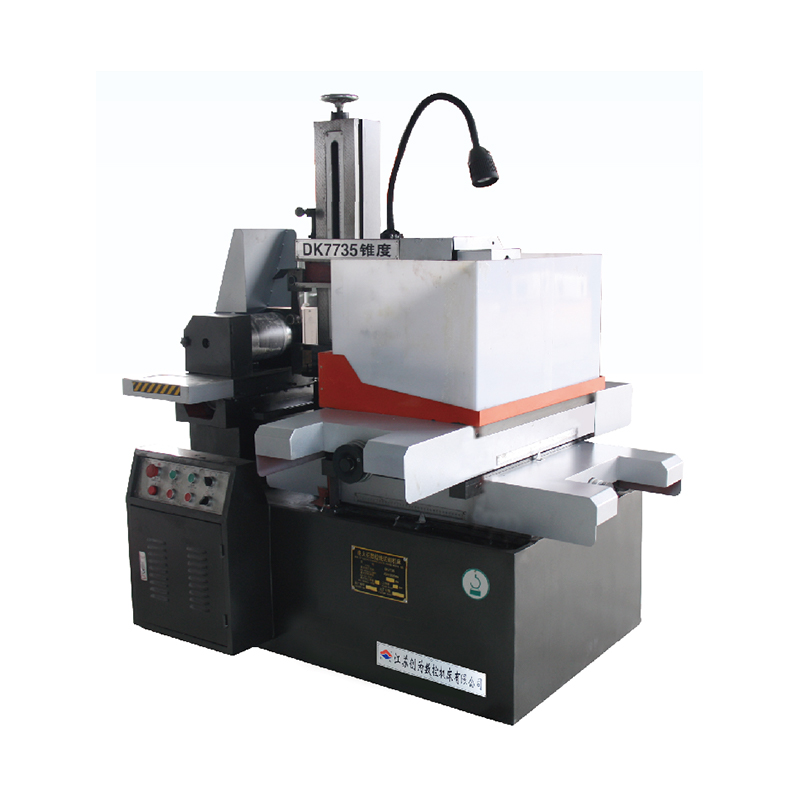

DK7735 GZ Ultra-high Speed Type CNC EDM Wire Cutting Machine

1. Workbench dimensions: 720×470mm
2. Maximum cutting thickness: 400mm
3. Maximum taper: 6º/80mm
4. Maximum load: 400kg
5. X, Y axis coordinate travel: 350×450mm
6. Molybdenum wire running speed: 0~11m/s
7. Workbench moving fat equivalent: 0.001mm
8. Power supply: 380V.50Hz (220V.50Hz)
9. Machine power consumption: <2KVA
10. Main machine weight: 1200kg
11. Main machine dimensions: 1470×1170×1510
12. Processing accuracy: According to GB/T 7926-2015 standard.
13. Optimum surface roughness Ra≤2.5um.
14. High-speed cabinet cutting efficiency: about 9000-12000mm²/H.

1. Integrated programming and control, simultaneous editing of processing, real-time tracking and display of processing trajectory, automatic generation of processing code software, full Chinese display menu, human-computer dialogue, easy to learn and operate.

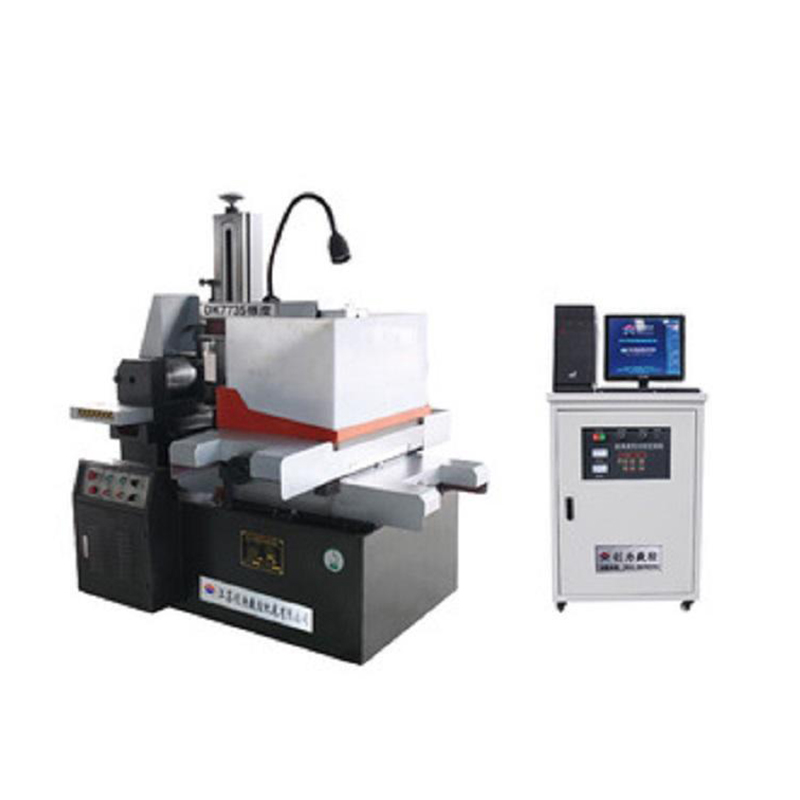

2. Host memory: 512 megabytes, motherboard: 845 (P4), K/M electro-optical kit,
P4 computer, 15" LCD display
3. Short-circuit retraction function during processing.
4. Power-off memory function.
5. Automatic double stop function at the end of processing, automatic centering function.
6. Breakpoint processing and reverse processing functions.
7. Data conversion of AUTOCAD's DXF format.
8. Browse the gallery to quickly find the required files.
9. Rotate at any angle, rotate in cycles.
10. Pulse width: 5-15us
11. Pulse interval: 1:2-1:16
12. No-load output voltage: 80V100V
13. Power consumption: <700W
14. Power supply: 220V or 380V

1. The machine bed is made of resin sand casting, which has small deformation and high strength after secondary tempering.
2. It has the characteristics of stable performance, high output power, fast cutting speed, high surface finish, and low molybdenum wire loss. Ultra-low molybdenum wire loss greatly reduces processing costs.
3. Integrated programming and control: complex graphics can be converted to DXF drawings through CAD, processing graphics can be tracked in real time, and multiple processing status can be displayed. It also has power failure memory, short circuit retraction, wire break protection, automatic shutdown, arbitrary angle rotation and other functions.
4. The brand wire cutting dedicated inverter is used to control the wire transport motor, stepless speed regulation, and contactless commutation with induction switch. There is no spark interference during commutation, no commutation noise, and the motor runs smoothly, which improves the reliability and safety of the machine tool.

The basic principle of EDM wire cutting is to use the tool electrode to perform pulse discharge on the workpiece to achieve processing. EDM wire cutting does not require the production of forming electrodes, and uses thin metal wire (usually called molybdenum wire) as the tool electrode. The positive pole of the pulse power supply is connected to the workpiece, and the negative pole is connected to the molybdenum wire; the molybdenum wire moves back and forth at a certain speed, and it constantly enters and leaves the discharge area; at the same time, a liquid medium is sprayed between the molybdenum wire and the workpiece. As long as the operator effectively controls the speed and trajectory of the molybdenum wire's movement on the workpiece, the required shape and size of the workpiece can be cut. The trajectory of the workpiece movement is formed by the coordinate worktable (two controlled stepper motors in the vertical and horizontal directions) moving in the X and Y directions.
The main machine of the DK series CNC wire cutting machine tool is composed of a bed, a worktable, a wire feeding device, a wire rack, a coolant tank, machine tool electrical appliances, accessories and other components. It is based on the bed, and the worktable, the wire feeding device, and the wire rack are installed on the same base surface of the bed.
The following are introduced separately:
1) Bed
The bed is a box-shaped resin sand cast iron part, which is an integral casting structure. The upper part is installed with a workbench, wire storage drum, wire rack, lighting and other parts.
2) Workbench
The workbench is mainly composed of a workbench surface, a middle drag plate, a ball screw and a speed gear box. The longitudinal and transverse movement of the drag plate adopts a ball guide structure, and the stepper motor drives the screw through two pairs of anti-backlash gears to realize the movement of the workbench. The ball screw has the advantages of high transmission accuracy, high efficiency and long life.
3) Wire transport device
The wire storage drum is composed of a thin-walled hollow cylinder. The motor drives the wire storage drum to rotate through the connector, and the reciprocating movement of the wire storage drum comes from the screw after the gear speed change to drive the wire transport device drag plate.
The frequent reversing of the wire storage drum drag plate is controlled by a set of induction switches. The structure is simple and the operation is sensitive. The left and right collision blocks are equipped with overload safety devices. When the induction switch fails to change direction, the current of the wire transport motor is cut off.
4) Wire rack
The molybdenum wire is like a closed transmission belt, which is driven by the winding drum to work back and forth. The wire wheel and a pair of main guide wheels are wrapped by the molybdenum wire and run in a cycle.
The guide wheel adopts a sealed section of molybdenum wire vertically.
5) Coolant tank
The water pump delivers the working fluid to the processing area. The sediment accumulates in the dirt box and must be cleaned regularly. The working coolant uses DX-1 saponified liquid.
6) Accessories
① Clamp: The group of clamps is used to fix the flat plate or cylindrical workpiece, and the clamp is fixed to the workbench with a T-type screw.
② Crank: Used for winding the wire to rotate the wire storage drum.
③ Wire tightening wheel: Used to manually tighten the molybdenum wire.
