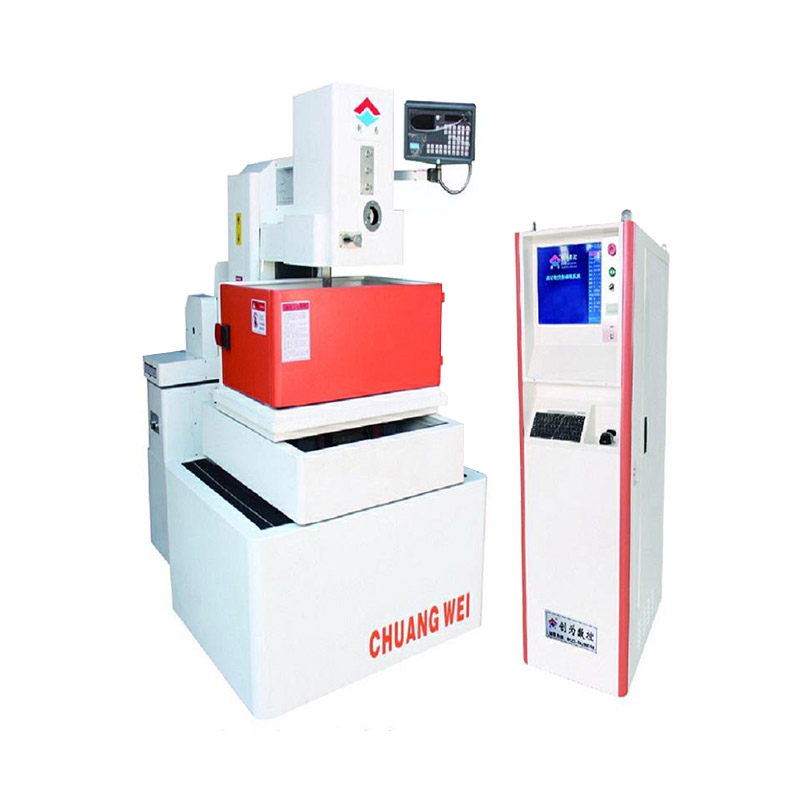

Three-axis CNC EDM Hole Drilling Machine (PC version)

Introducing the Three-axis CNC EDM Hole Drilling Machine (PC version), a cutting-edge solution designed to meet the demands of precision engineering and manufacturing. This advanced machine utilizes Electrical Discharge Machining (EDM) technology to drill highly accurate holes in hard materials such as tungsten carbide, hardened steel, and exotic alloys. The three-axis configuration ensures precise control over the drilling process, allowing for complex geometries and intricate patterns.

Equipped with a user-friendly PC-based interface, this machine offers seamless programming and operation, making it ideal for both experienced operators and novices. The intuitive software provides real-time monitoring and adjustments, ensuring performance and minimizing downtime. High-speed spindle and advanced servo motors guarantee smooth and efficient drilling, while the robust construction ensures durability and long-term reliability.

The Three-axis CNC EDM Hole Drilling Machine (PC version) is perfect for applications in aerospace, automotive, mold making, and medical device manufacturing. Its ability to produce small, deep holes with high aspect ratios makes it an invaluable tool for creating cooling channels, wire EDM start holes, and other critical features.

Key features include automatic electrode replacement, precise depth control, and a comprehensive safety system. Experience the future of precision hole drilling with the Three-axis CNC EDM Hole Drilling Machine (PC version) – where accuracy, efficiency, and ease of use converge.

CONTACT US Jiangsu Chuangwei CNC Machine Tool Co., Ltd.

Product Structure Description

The CNC punching machine control system is a control system that integrates hole editing and small hole processing. The system uses an embedded touch screen system and a friendly human-machine interface to complete hole editing and processing parameter settings. The system can directly accept CAD interactive graphic files (.DXF files) and has strong versatility. The intelligent closed-loop control method completes the precise positioning and continuous processing of multiple holes.

Mechanical features

1.Using ultra-high-definition 18-inch computer touch screen.
2.Suitable for processing various conductive materials such as stainless steel, hardened steel, carbide, copper, aluminum, etc.
3.Low power consumption, processing hole diameter 0.15-3mm, maximum depth-to-diameter ratio can reach more than 300cm.
4.High power consumption, processing speed can reach up to 30-60mm/min.
5.Directly penetrate from the inclined surface and curved surface; directly use tap water as the working fluid, and can be recycled in a circulating water tank.
6.Automatic edge positioning function.
7.High-precision gratings are installed on the X and Y devices of the workbench.
8.The spindle is equipped with a precision servo motor, which can be lifted and lowered quickly and has good punching stability.
9.Using Taiwan's latest circuit PC board and fast SMLS circuit, the processing surface is burr-free, the failure rate is low, and the maintenance is convenient.
10.The rotating head adopts alloy end face sealing technology, toothed belt drive, and no noise.
11.X, Y, and Z axes are equipped with Hanjiang grinding precision ball screws.
12. Precision linear guides are used for X, Y, Z axis travel and auxiliary travel.
13. AC servo motors are used for X and Y, with fast moving speed, high precision, good stability and low noise.
14. Equipped with automatic oiling device and 100% penetration detection device.
15. The bearing adopts Harbin C-grade thrust bearing, and the system adopts the most advanced network CNC punching machine system in China.

Main technical parameters

Parameter name Unit Parameter Value
Workbench size mm 470×710
Electrode clamping diameter mm 0.15-3
Spindle stroke mm 250
Spindle servo stroke mm 360
Spindle head (C axis) revolutions RPM 220
X/Y stroke mm 300×400
Maximum distance between guide and workbench mm 300
Maximum machining current A 30
Maximum input power KW 2.5
Working fluid tank capacity L 25
Maximum working fluid pressure MPa 10
Machine weight Kg 900
Machine dimensions mm 1400×1600×2000
Working fluid filtration method Line Gap
