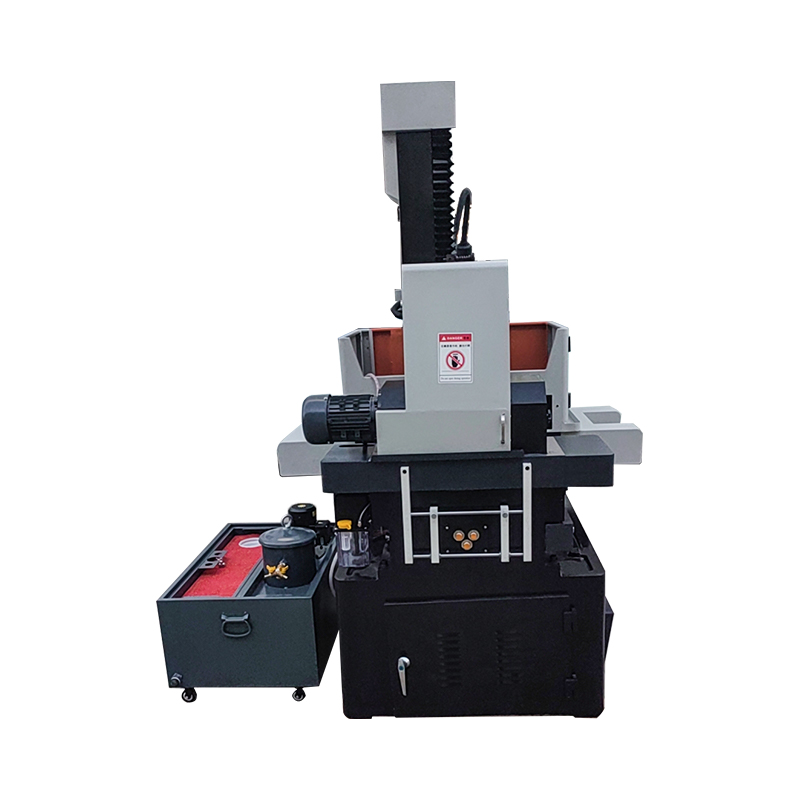

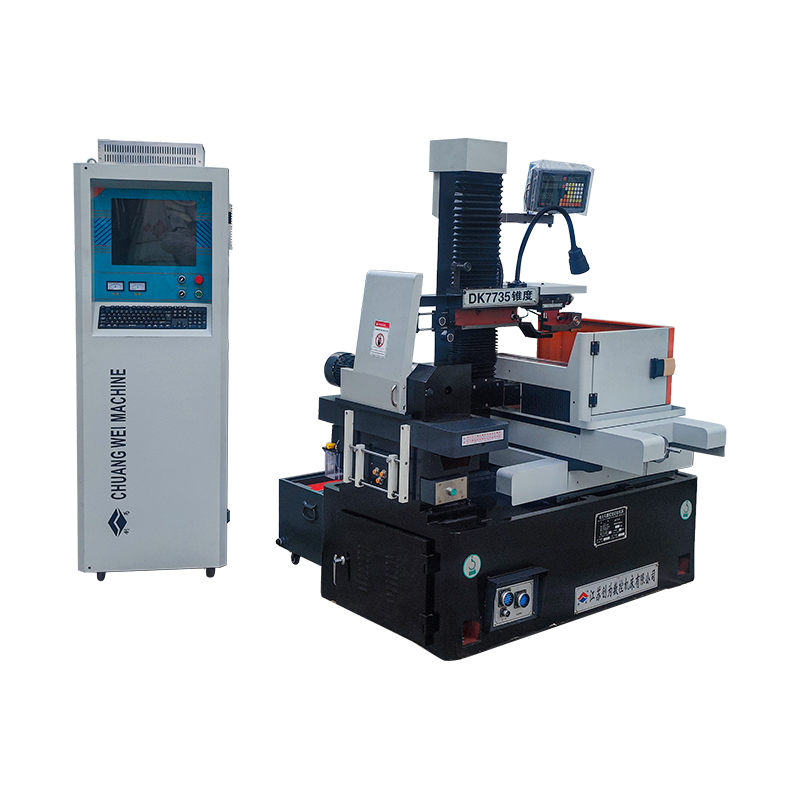

DK7735FZ High-Pressure Water Tank Stepper CNC EDM Wire Cutting Machine

The DK7735FZ High-Pressure Water Tank Stepper CNC EDM Wire Cutting Machine is a precision engineering marvel designed for high-accuracy and high-efficiency wire cutting operations. It features an advanced stepper motor system that ensures precise control and smooth operation, crucial for intricate and detailed cutting tasks. The high-pressure water tank integration facilitates effective cooling and debris removal, enhancing the machine's performance and longevity.

Equipped with CNC (Computer Numerical Control) technology, the DK7735FZ allows for automated and programmable cutting processes, ensuring consistency and reducing the likelihood of human error. This machine is capable of handling a variety of conductive materials, making it versatile for multiple industrial applications, including aerospace, automotive, and mold manufacturing.

The robust construction of the DK7735FZ ensures stability and durability, even under continuous operation. Its user-friendly interface, combined with powerful software, provides operators with ease of use and the ability to execute complex cutting patterns with minimal setup time. Safety features such as automatic shutdown and emergency stop mechanisms ensure operator protection and machine integrity.

DK7735FZ High-Pressure Water Tank Stepper CNC EDM Wire Cutting Machine stands out for its precision, reliability, and efficiency, making it an essential tool for industries requiring high-quality wire cutting solutions.

CONTACT US Jiangsu Chuangwei CNC Machine Tool Co., Ltd.

Product Structure Description

1, The basic principle of EDM wire-cutting processing:
EDM wire cutting processing, pulse discharge between the electrode wire and the workpiece, as shown in figure one. When coming to an electric pulse, between the electrode wire and the workpiece produces a spark discharge, in the center of the discharge channel, the temperature instantly up to 10,000 ℃ or more, a high temperature so that the workpiece metal melts, so as to achieve the purpose of cutting metal.

2, The composition of the machine tool:
The machine tool mainly consists of a worktable, wire transport mechanism, wireframe, working fluid system machine electrical and numerical control system, and other parts.
(1) worktable
The worktable is used to clamp the workpiece to be processed, to achieve the processing of automatic feeding. It is mainly composed of an upper and lower cross-drag plate, precision ball screw, backlash-free gear, and guideway. The upper and lower drag plate moves back and forth along the precision linear guideway and its power is transmitted by the stepping motor to the ball screw through the backlash-free gear set to achieve, due to achieving a pulse to make the worktable move 0.001mm requirements, and in the operation of the requirements of sensitive, smooth, and therefore on the precision linear guideway, ball screw, backlash-free gear set, the drag plate have strict requirements, not only the precision of the requirements of the high and have a certain degree of rigidity and wear resistance. Certain rigidity and wear resistance.
(2) Wire transport parts
The wire transport component is mainly used to drive the electrode wire according to a certain linear speed movement and the electrode wire is neatly wound on the storage barrel, the wire transport mechanism is composed of a motor storage barrel, upper and lower drag plate, synchronous belt, reversing device, and other components.
Its basic requirements are:
① The storage cylinder on the one hand rotating moving, to ensure that the electrode wire in the storage cylinder is neatly arranged.
② The radial runout and axial runout of the storage cylinder should be small.
③ Cylinder should be rotated forward and reverse.
④ The wire storage mechanism should be insulated from the bed.
⑤ The wire transporting part adopts a closed cover to prevent the working fluid from splashing.
(3) Wire frame parts
The wireframe parts are mainly composed of columns, an upper and lower cantilever, a guide wheel, a taper head, and other components. The wireframe component and the wire storage cylinder component together form the movement system of the electrode wire. The main function of the wireframe is to support the electrode wire when it is moving at a stable linear speed and to keep the working part of the electrode wire at a certain geometrical angle to the table plane.
The taper assembly (cross-type drag plate mounted on the upper cantilever) can ensure the machining workpiece achieves 6°/80㎜.

(4) Bed components
The bed is a whole square box structure, thus the rigidity and strength are good, the upper part of which is equipped with table parts, wireframe parts, and wire transporting parts, and the lower part is equipped with a working liquid tank and electrical parts of the machine tool, which is not only safe but also conducive to the improvement of the operating environment.

Description of products at the leading level in China

1、High quality castings and aging treatment
Casting grade: HT200
Casting aging treatment: artificial aging and natural aging
Casting - artificial aging - rough planing - natural aging (more than half a year) - high-frequency vibration aging - machining - assembly The castings treated in this way ensure the stable performance of the main basic parts of this machine tool. Stability of the performance of the main basic parts of the machine tool.
2, the main parts are all domestic and foreign well-known manufacturers (attached). Only in this way can we guarantee that the supporting parts we choose are always of high quality and advanced.
3、Advanced and reasonable machine structure
(1) The overall layout of the machine is reasonable and the overall rigidity is good. According to our experience, because the upper and lower arms are cantilevered, and the column constitutes a tuning fork structure, thus the strength of the rigidity of the column will directly affect the stability of the wire frame, affecting the roughness and accuracy of the workpiece, so we will design the column cross-section to be larger, so as to ensure the overall rigidity.
(2) The main bearings used for the ball screws in the table parts are specially paired with those produced by a professional manufacturer (Harbin Bearing Factory), and this pair of bearings ensures that the axial clearance of the bearings is within 0.004㎜.
(3) The upper arm is equipped with a taper head, which not only can cut taper workpieces, but also can make it more convenient to adjust the verticality of molybdenum wire.
(4) High degree of automation. The machining process is fully automatic and equipped with automatic protection of broken wire, power failure protection, automatic centre finding and other functions.
6、Strict assembly process
(1) Reasonable assembly line and strict assembly process.
a) After the parts are checked and qualified, the parts will be assembled strictly according to the assembly process, and the parts will be inspected and qualified before entering the general assembly.
b) Each process has strict assembly process and inspection requirements for each part, and each machine tool not only has the whole machine inspection record, but also has the part inspection record and the parts inspection record.
(2) Key assembly processes, the establishment of quality control points, special assembly, special inspection and record. Such as the assembly of the guide wheel, ball screw bearing assembly, storage cylinder assembly and so on.

Mechanical features

1. The main machine adopts a rectangular bed and column structure, which can make the table move completely on the bed effectively guarantee the precision of table movement, and make the machine stable and reliable.
2. The machine tool adopts a large adjustable wire frame, reasonable structure, and good rigidity, suitable for large thickness cutting adjustable range of 400mm.
3. X, Y-axis adopts high precision, ball screw can achieve high sensitivity activity precision, all kinds of guide rail adopts high-strength Gr15 bearing steel, hardness (HRC), to ensure that more than 55 °, which in turn ensures the machining accuracy, improve the stability of the machine tool and durability.

Main technical parameters

Worktable outside dimensions: 720×470mm
Maximum cutting thickness: 400mm
Maximum taper:  6º/80mm(±3°)
Maximum load weight: 400kg
X, Y axis coordinate travel: 350×450mm
Molybdenum wire running speed: 0~11m/s
Table moving animal impulse equivalent: 0.001mm
Power supply: 380V.50Hz(220V.50Hz)
Machine power consumption: <2KVA
Weight of the main machine: 1200kg
Outer dimensions of the main machine: 1470×1170×1510
Machining accuracy: According to GB/T 7926-2015 standard
Optimum surface roughness. Ra≤1.5um。
